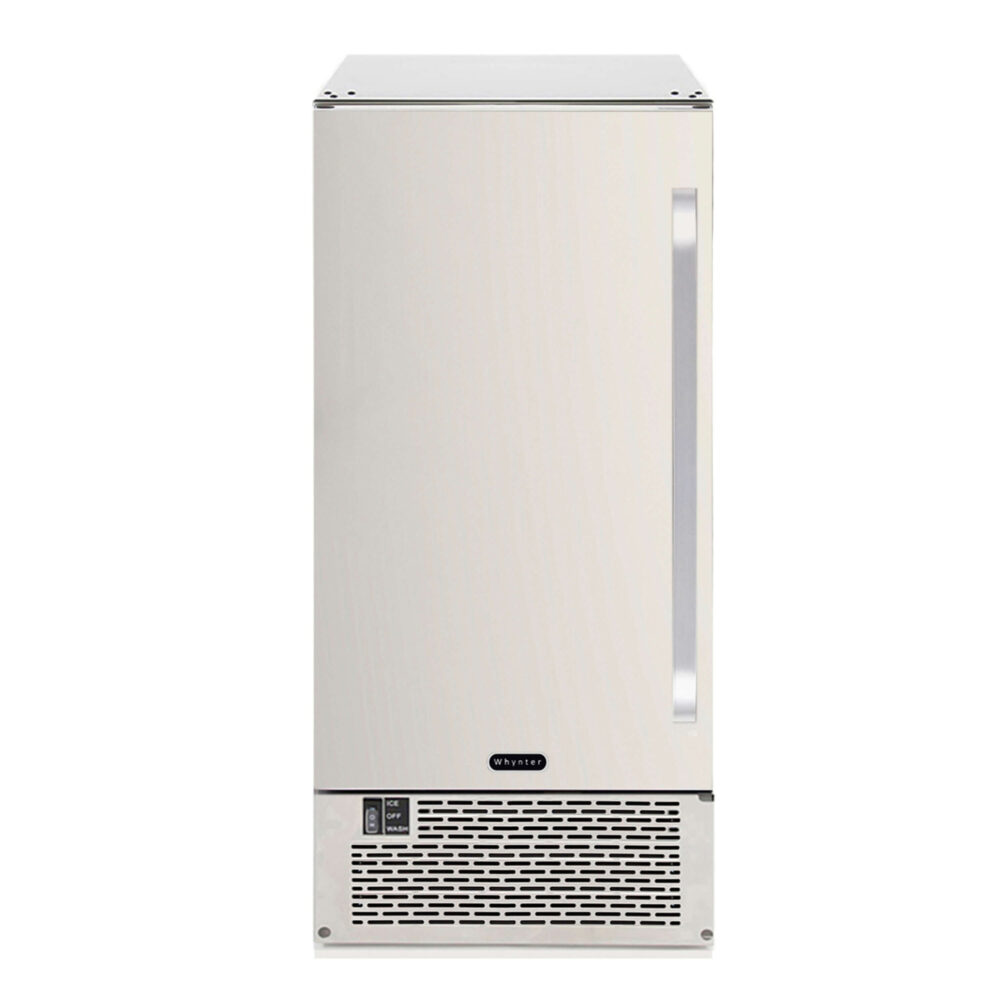

The Whynter UIM-502SS / UIM-502SSa Stainless Steel Built-In Ice Maker complements any modern kitchen and bar area making 80 lbs of clear ice cubes in 24 hours and can store 25 lbs of ice. The stainless steel housing also ensures that you won’t get any smudges or prints on the ice maker, all the while keeping the unit safe from normal wear and tear.
CLEAR ICE CUBES
Minerals and deposits are removed by the water recirculation system and deposited in the water trough. Clear ice cubes are produced when clean water freezes to the ice grid and cascades down onto the ice tray from the distribution tube. In addition, fresh water is continuously pumped into the trough and circulated to produce clear cubes of the desired thickness and a steady stream of clean water.

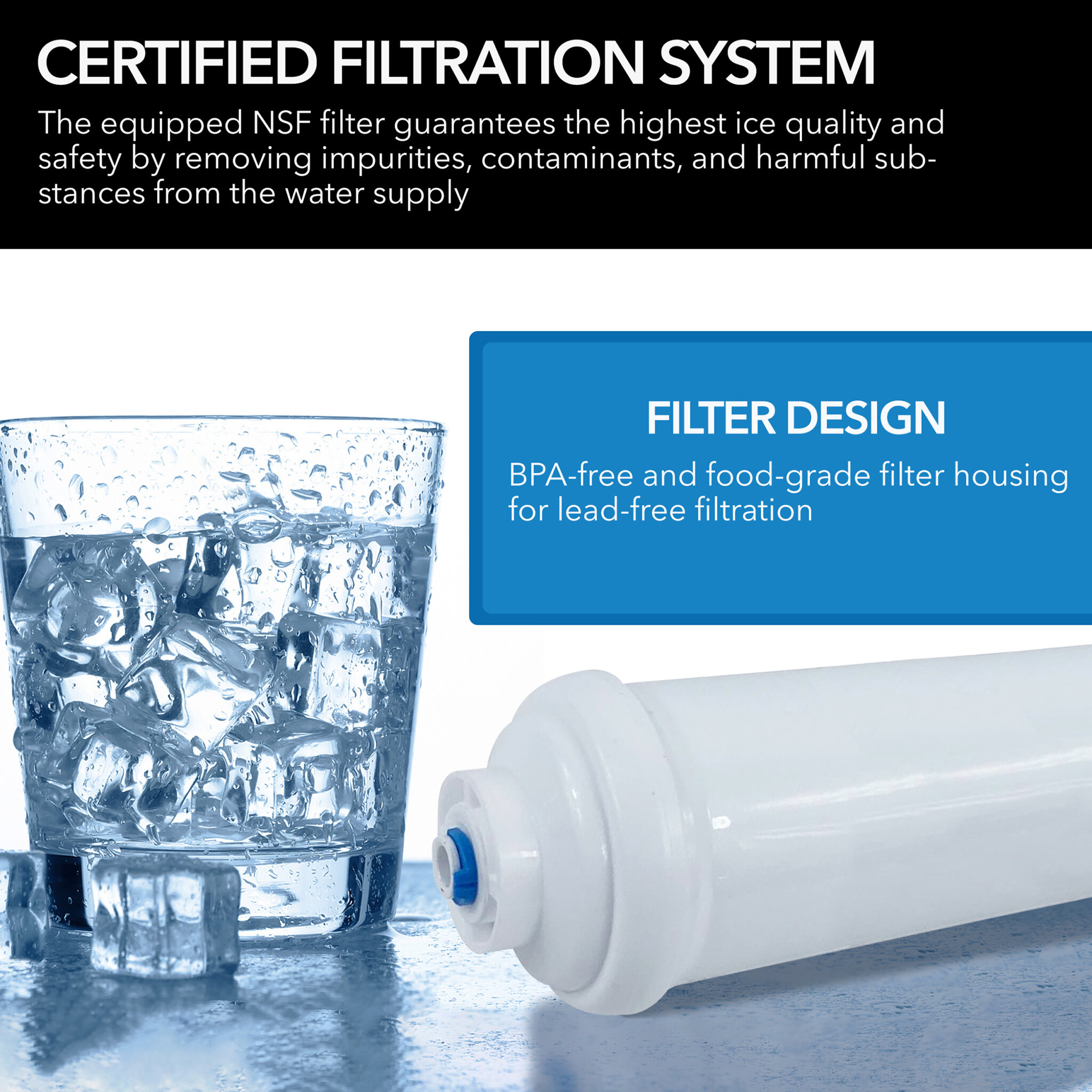

INLINE WATER FILTER
This Whynter UIM-502SS comes with an inline water filter that is certified to NSF standards. With the NSF certification mark, this means that this water filter has been tested for safety to help protect you and your family. This filter ensures that it can remove chlorine and will not leach contaminants into your drinking water.
SAFE AND FRESH
The advanced evaporator system of the Whynter UIM-502SS produces ice that is nearly impure, tasteless, odorless, and crystal clear.
This energy-efficient direct plumbing ice maker allows you a constant supply of restaurant-quality clear ice at a lower utility cost compared to other similar brands.
*For installation, please consult a professional plumber.
| Color | Stainless Steel |
|---|---|
| Installation Type | Freestanding / Built-in |
| Ice Capacity (lbs) | Up to 25 lbs |
| Compressor | CFC-free |
| Reversible Door | Yes |
| Auto Restart / Shut off | Yes |
| Energy Star Rated | Yes |
| Accessories / Power Cords | Drain Hose, Water hose |
| Refrigerant | R290a |
| Maximum Power Consumption | 155W / 3.0A |

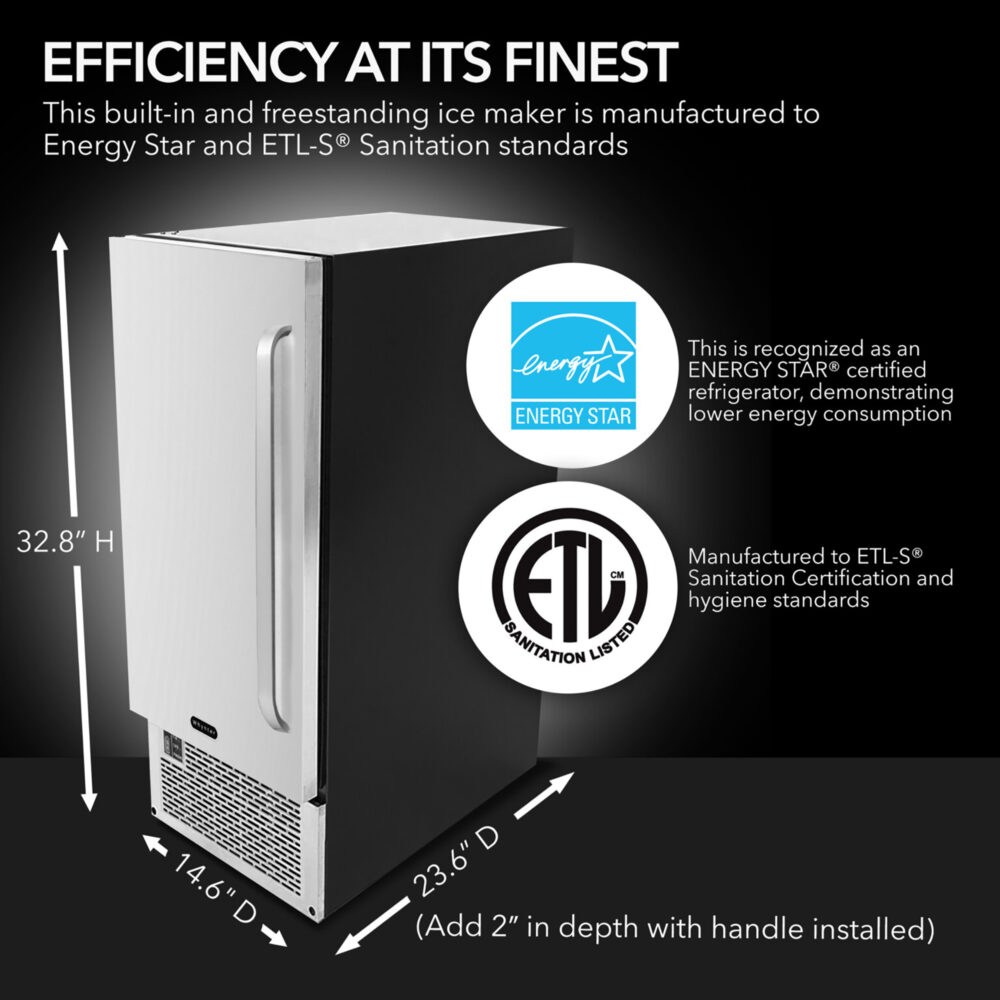

| Unit Dimensions | 32.8” H x 14.6” W x 23.6” D (Add 2" in depth with handle installed) |

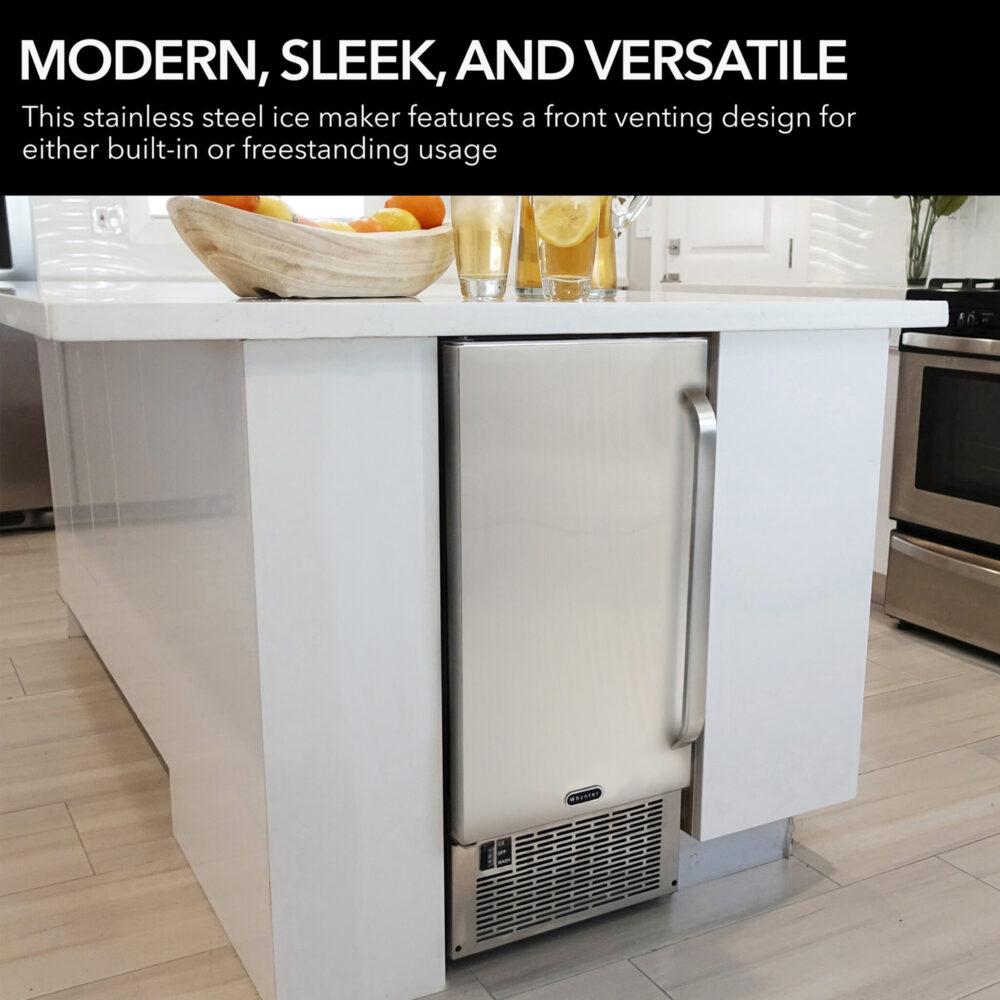

● Built-in or freestanding installation (front venting)
● Makes 80 lbs of restaurant-quality clear ice cubes in 24 hours
● ENERGY STAR Certified
● Comes standard with (1) NSF Inline Water Filter
● Sleek stainless steel door and black cabinet
● Luxurious curved handlebar

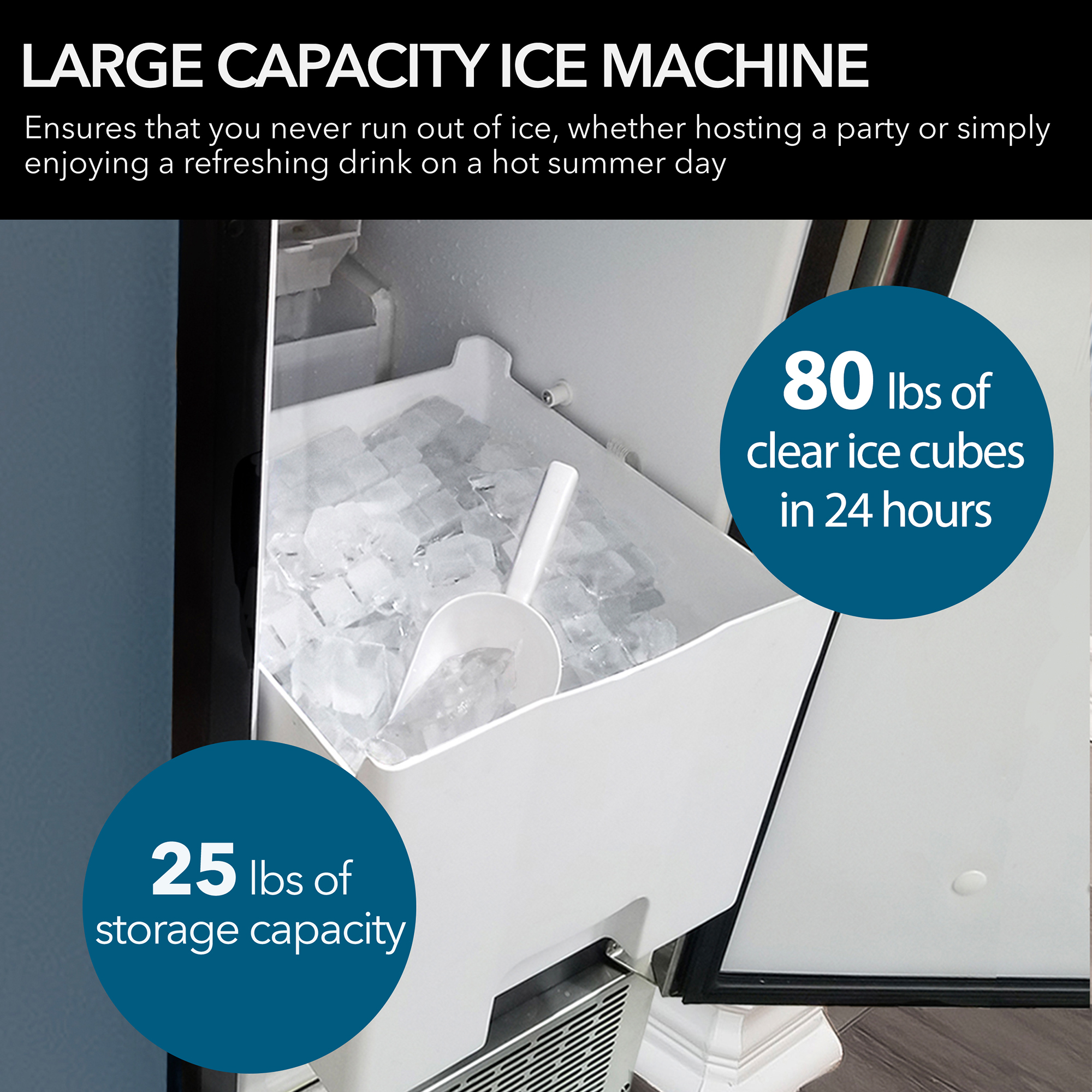

● Stores up to 25 lbs of ice
● Auto shut-off when ice bin is full

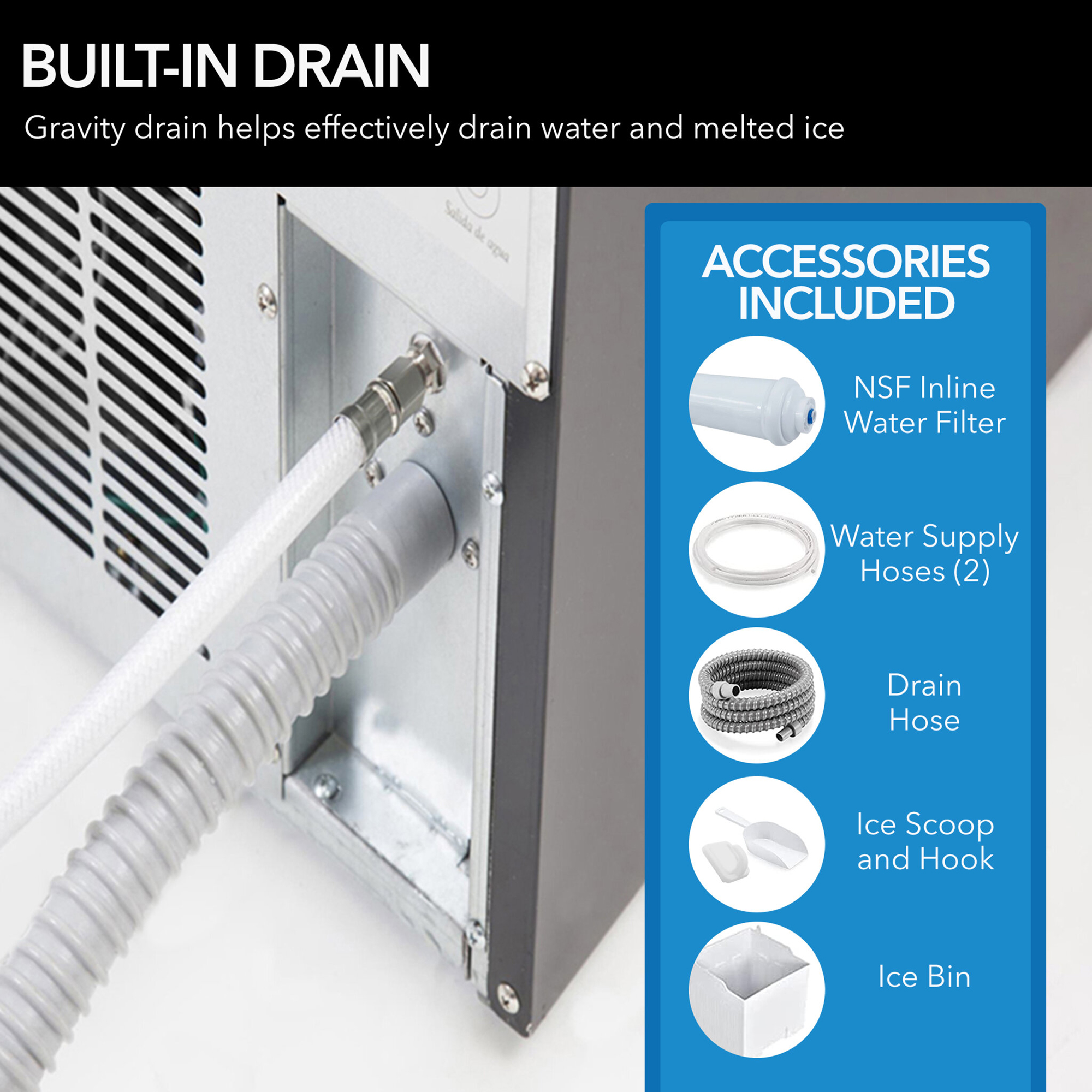

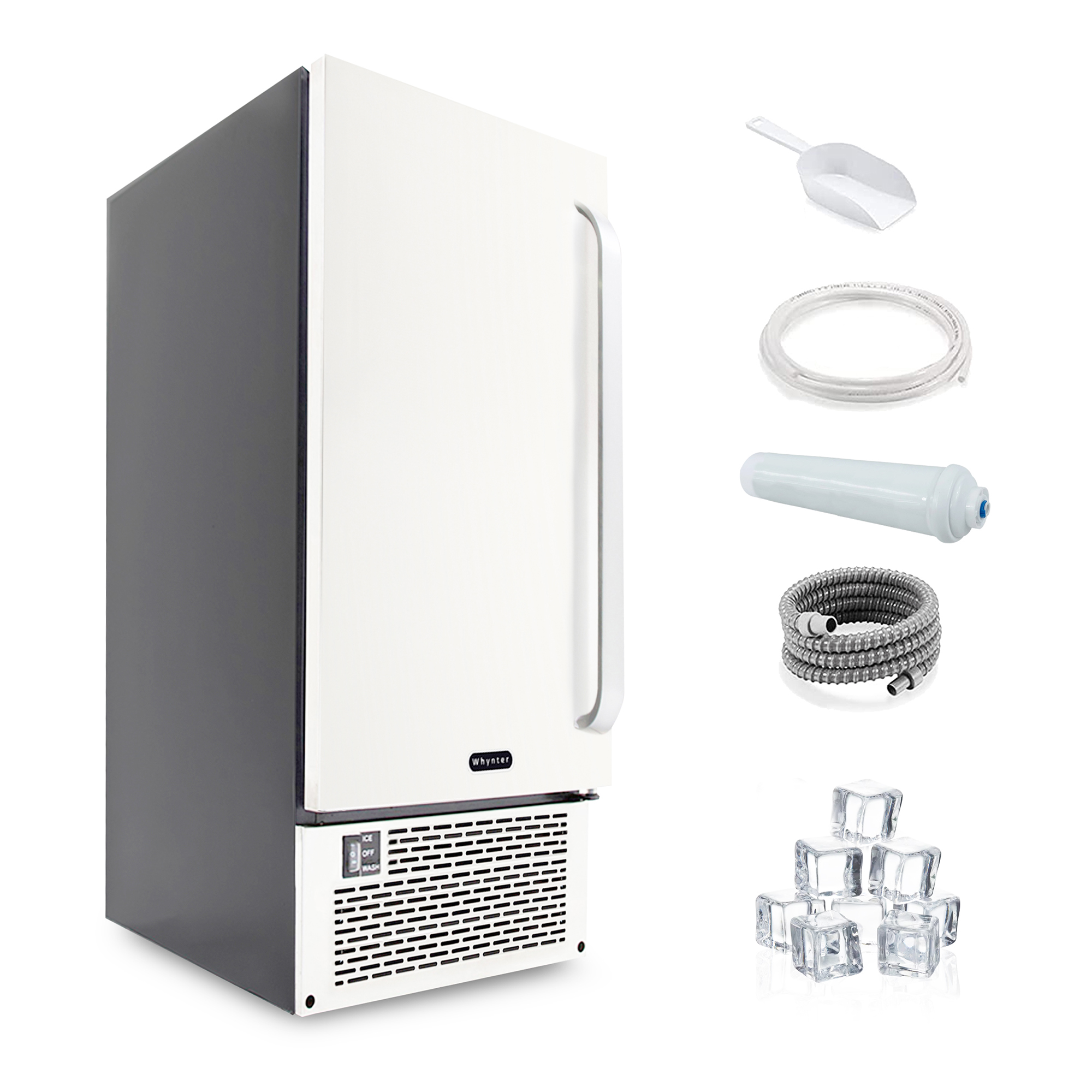

● Ice scoop, Water Hose and Drain Hose included
● Easy-to-use; one switch operation

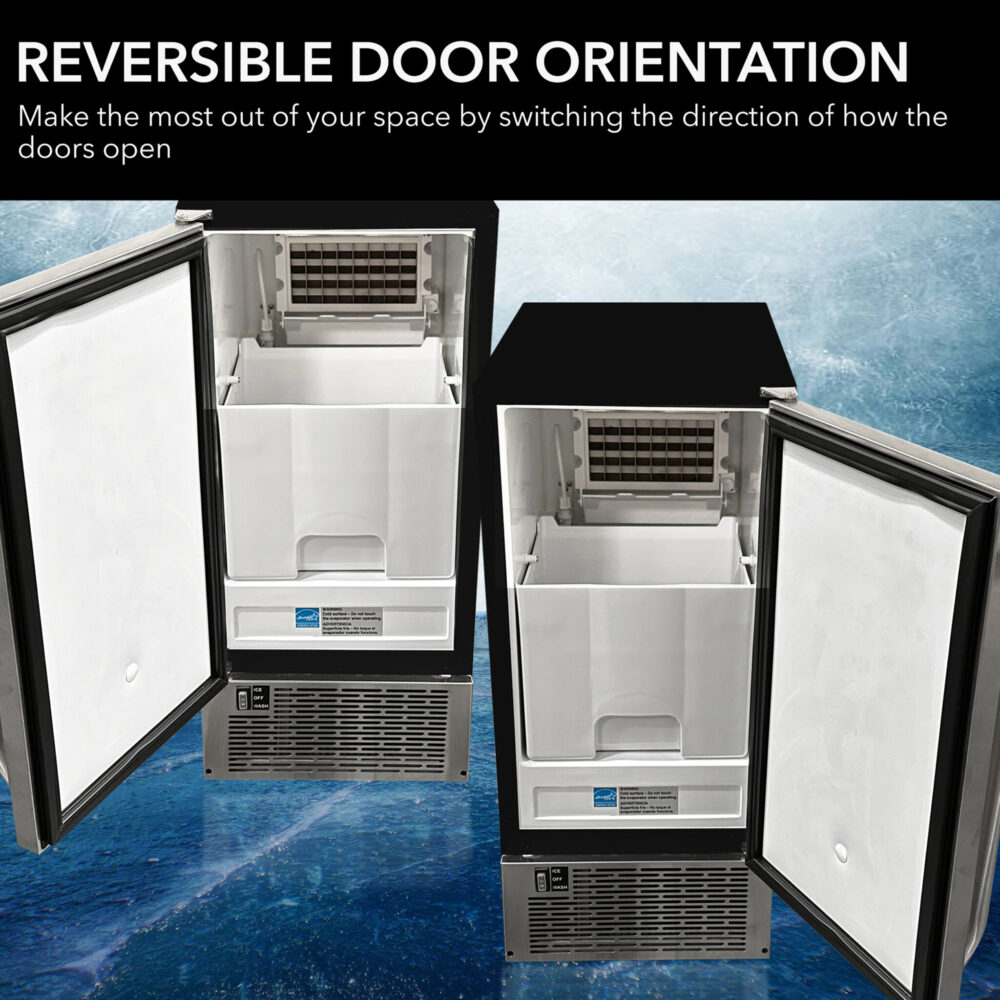

● Reversible door swing
● Manual Defrost
● High-efficiency CFC-free compressor
● Refrigerant: R290a
● Voltage: 115V /60Hz
● Watts Power consumption: 155 Watts / 12.2kWh/100 lbs of ice
● Ice-making Amps current: 2.3A
● Ice-harvesting Amps current: 2.0A
● ETL Certified
● ETL-S® Sanitation Certified
● Product dimensions: 32.8” H x 14.6” W x 23.6” D (Add 2″ in depth with handle installed)
● Package dimensions: 35” H x 17” W x 26” D”
● Net weight: 91 lbs
● Gross weight: 104 lbs
● UPC: 852749006016 (UIM-502SS)
● UPC: 850014459468 (UIM-502SSa)
*This unit comes with one-year limited warranty.
We offer portable, freestanding, and built-in ice makers. Some units are manual fill, while others can be connected to a water line. Certain models are drain-free, while others require a drain.
Some models come with an inline water filter, while others do not. Check your model specifications to confirm.
We offer crescent, bullet, cube, and pebble ice, depending on the model. Each type is designed for different uses and preferences.
Not all models maintain ice in a frozen state. Some units recycle melted ice water to produce fresh ice continuously. Models with a freezer function can keep ice frozen for longer periods.
Manual fill units require you to pour water into the reservoir. Units that connect to a water line can automatically refill. Check your model guide for details.
It depends on the drain type of your model. Drain-free units recycle water internally and do not require a drain. Models that are not drain-free will require gravity drain access.
Ice makers require several inches of clearance around the sides and back for proper airflow. Built-in models are typically vented from the front, while freestanding and portable units vent from the sides or rear. See the installation manual for full guidelines.
Ice production varies by model and ice type. Portable units generally produce ice faster than larger freestanding or built-in models. Production may slow if the ice bin is full.
Using filtered or distilled water can produce clearer, better-tasting ice. Models with a built-in water filter will further enhance ice quality.
Refer to your model’s manual for detailed cleaning instructions. Regular cleaning is recommended to prevent mineral buildup and maintain ice quality.
Most models operate quietly, but you may hear the compressor or ice dropping during production cycles.
No. Ice size depends on the model and ice type. Some models also have different ice size options. Check the specifications to confirm the type of ice produced.
