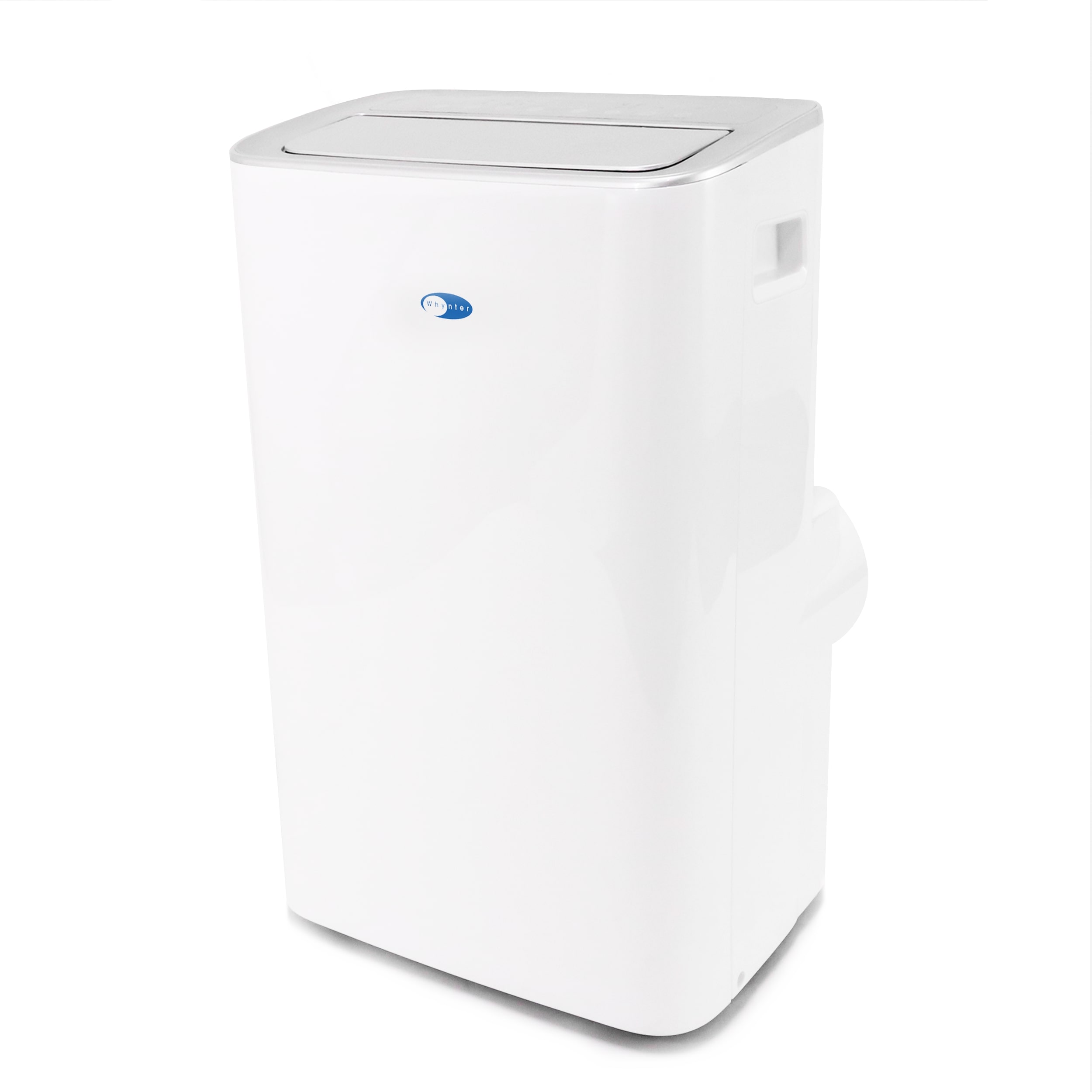

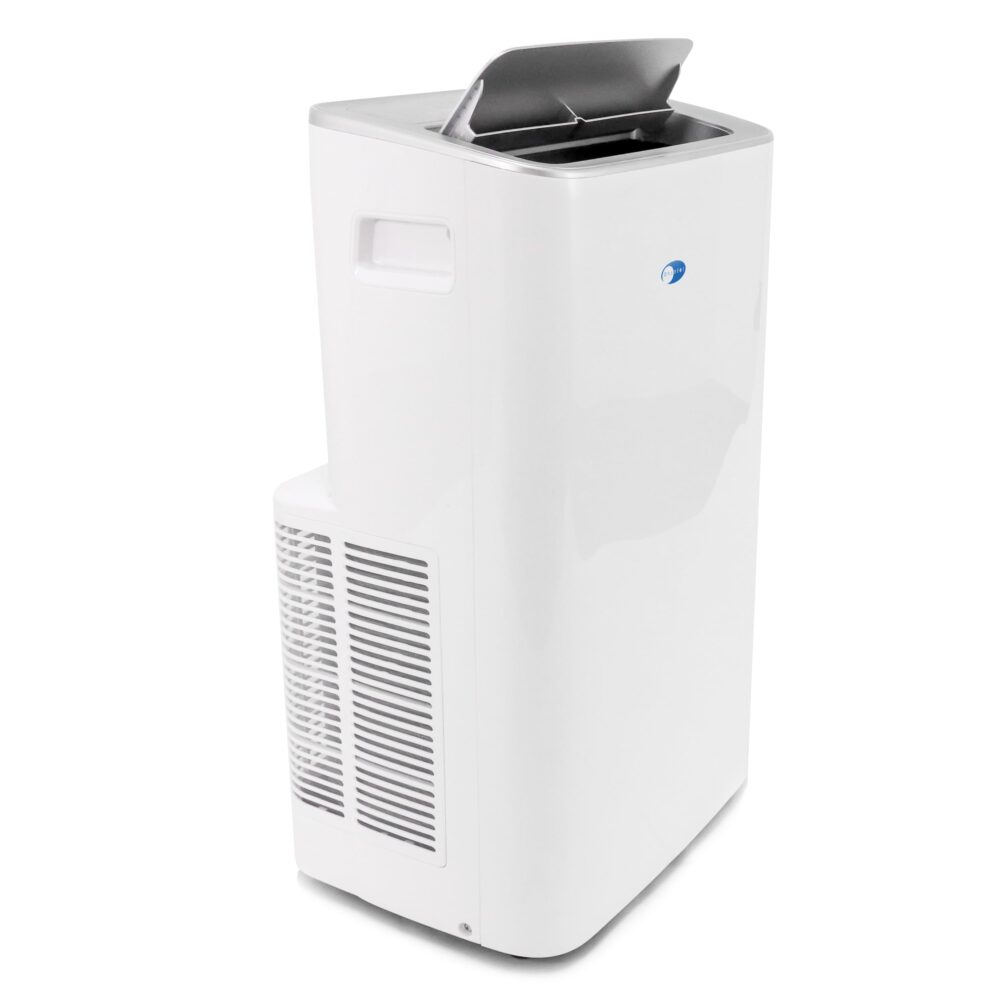

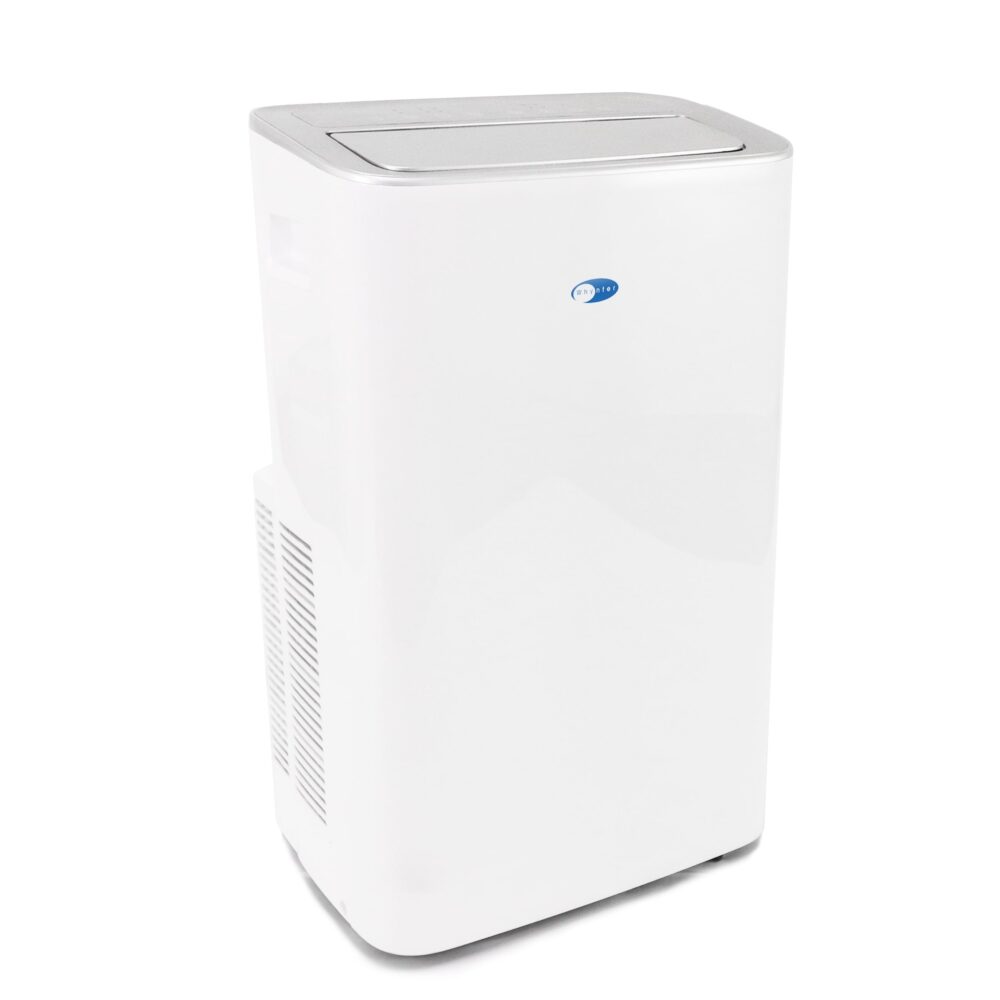

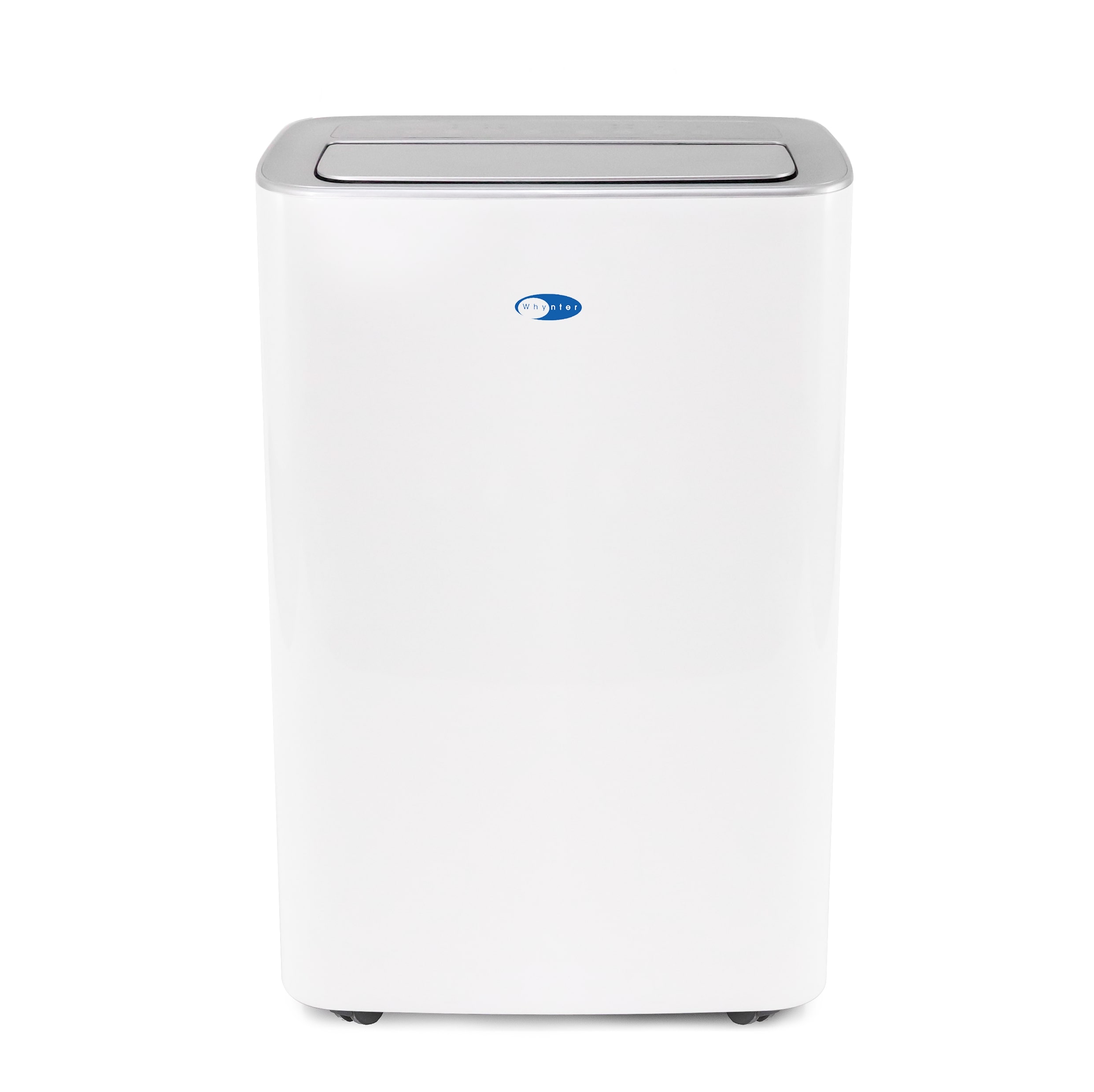

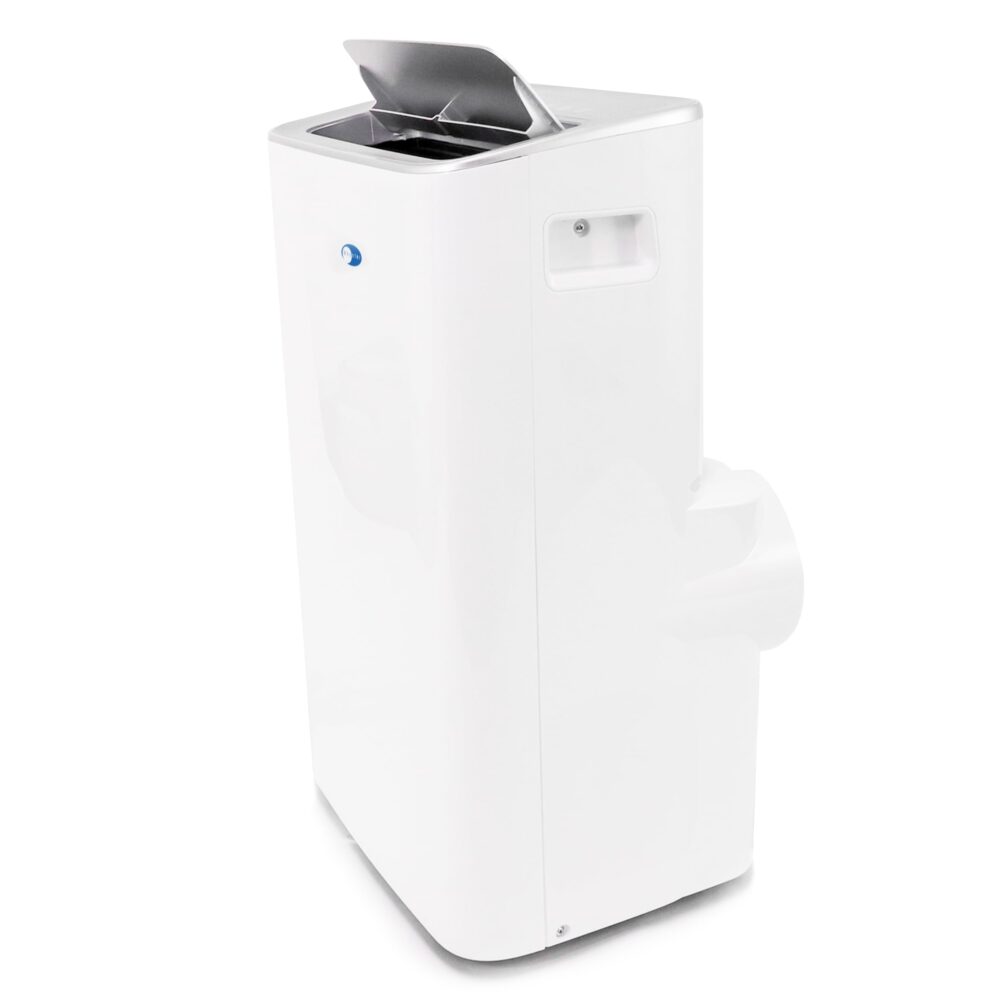

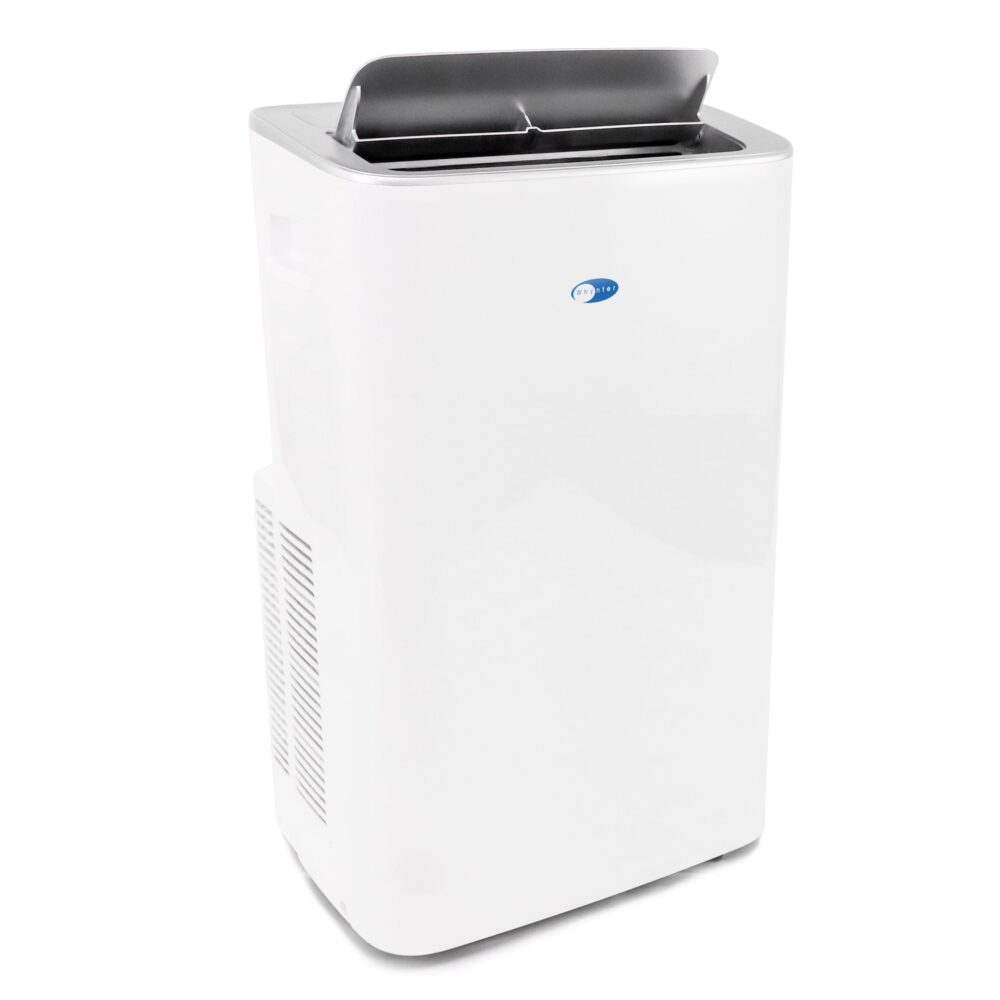

Whynter ARC-1050XP 12,000 BTU Portable Air Conditioner

A portable air conditioner is a self-contained, freestanding unit designed to cool individual rooms. It includes wheels for easy movement, an exhaust hose, and a window kit to vent hot air outside. Some models also include a heat function using reverse air conditioning, allowing you to warm a room in cooler weather. Ideal for homes, offices, dorms, server rooms, and more.

• Draws in warm room air
• Cools it using an internal compressor and refrigerant
• Expels cooled air back into the room
• Vents hot air outside through an exhaust hose
• Removes humidity through automatic evaporation or drainage

Portable AC models with a heat function use reverse air conditioning, or a heat pump. In cooling mode, the system extracts heat from inside the room and expels it outside. In heating mode, the process is reversed: the unit extracts heat from the outside air and delivers it inside. The heat function requires ambient temperatures above 41°F (5°C) because below this temperature, there isn’t enough heat in the outside air for the heat pump to operate efficiently, which can reduce performance or prevent heating altogether.

Yes. All portable ACs must vent hot air to the outside to cool effectively. This is typically done through a window using the included kit. Alternate venting options include sliding doors, drop ceilings, or dedicated wall vents.

Yes. Whynter window kits work with both vertical (sliding) and horizontal (sash) windows. Measure your window and cut the panel to fit for a secure seal.

Not directly. While a window is the most common solution, alternatives include:

• Vertical sliding doors (with kit)
• Drop ceiling panels
• Wall vent installation
• Dryer vent exhaust (if compatible)

• Single hose:
Pulls air from the room to cool
Simpler setup, less efficient in large or sunny rooms

• Dual hose:
One hose brings in outside air
One hose exhausts warm air
Cools faster and helps maintain room pressure

Use BTU (British Thermal Unit) ratings to match your room size:

Up to 300 sq ft → 8,000–10,000 BTU
300–500 sq ft → 11,000–14,000 BTU
500+ sq ft → 14,000+ BTU

Consider ceiling height, sun exposure, and appliance heat when sizing.
The above information provided is for reference only.

Yes. As the unit cools, it also dehumidifies the air. Most Whynter models use auto-evaporation, and in high-humidity areas, you can also connect a drainage hose for continuous water removal.

Auto-evaporation: Water is expelled with hot air through the exhaust hose

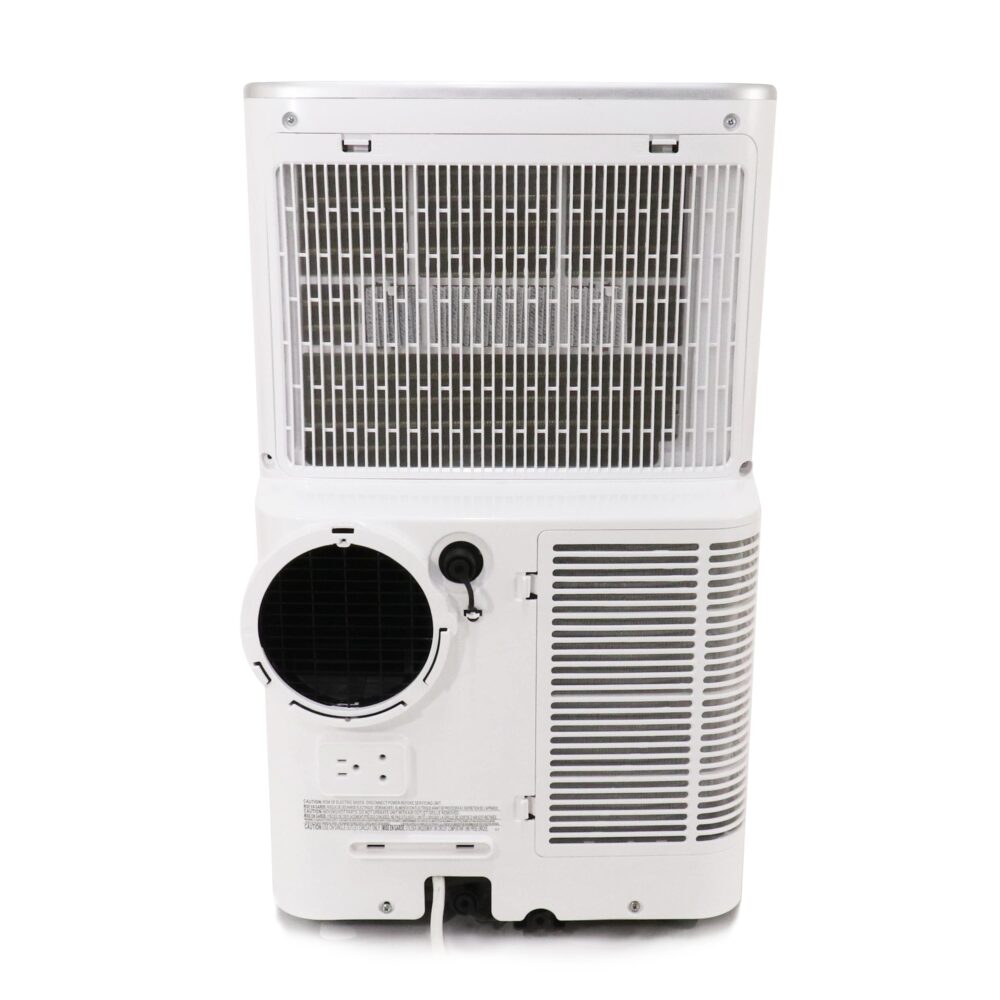

Manual drain: Open the lower rear drain port to remove excess water. Place a low-profile container, shallow pan, or bucket under the port to catch the water safely.

Tip: For a cleaner and more convenient solution, use the Whynter Drain Bucket Accessory, designed to fit securely beneath the drain outlet and prevent spills.
Continuous drainage (applicable models only): Attach a hose to the upper drain port in a downward direction for hands-free draining into a floor drain or bucket
Tip: Ensure the continuous drainage hose flows downward by gravity and is not kinked or elevated, as this may prevent proper drainage.

No. For safety and optimal performance, your portable air conditioner should be plugged directly into a grounded wall outlet on a dedicated circuit. Sharing an outlet with other high-powered devices (like refrigerators, microwaves, or power strips) can cause:
• Circuit overloads or tripped breakers
• Overheating or fire hazards
• Damage to the unit
• Voided warranty
Tip: If a dedicated outlet isn’t available, consult a licensed electrician.

Most units operate between 50–60 dB, similar to a conversation or fan. Sound levels vary by fan speed and compressor activity.

Yes, but it’s best to give the unit breaks for optimal performance and longevity. Make sure:
• Filters are clean
• Hoses are secure
• The unit is placed in a ventilated area

Common reasons:
• Room is too large for the unit
• Direct sunlight or poor insulation
• Dirty filters or blocked exhaust
• Window kit is not sealed properly
• Compressor delay (wait 3–5 minutes before restarting)

Remove and rinse the washable filters with warm water every two weeks. Let dry completely before reinstalling.

Follow these steps:

1. Power off and unplug
2. Drain all water from the unit
3. Clean and dry the filters and hose
4. Coil accessories and store in the unit (if possible)
5. Keep upright in a cool, dry place
6. Before next use, let the unit sit upright for at least 2 hours.

Yes. Whynter portable ACs use eco-friendly, CFC-free refrigerants such as R-32 or R-410A.

• EER (Energy Efficiency Ratio) measures how efficiently a portable air conditioner cools a space, calculated as:
EER = BTUs ÷ Watts
A higher EER means better energy efficiency. For example, a unit with 10,000 BTUs that uses 1,000 watts has an EER of 10.

• CEER (Combined Energy Efficiency Ratio) is a more modern metric that includes standby/off-mode power consumption.
CEER is considered a better indicator of real-world energy usage, especially for units with digital displays or remotes. Look for CEER ratings of 8.5 or higher for good efficiency.
Tip: Both EER and CEER are helpful, but CEER is used more often for window units, while portable ACs are better evaluated by their SACC rating (see next question).

SACC, or Seasonally Adjusted Cooling Capacity, is the Department of Energy’s (DOE) 2017 standard for portable air conditioners. Unlike the older BTU ratings, SACC accounts for:
• Variable room conditions
• Heat added by the unit’s motor
• Air leakage during venting
• It gives a more accurate picture of how well a portable AC will cool in real-world use.

Example:
An older unit rated at 14,000 BTU (ASHRAE) might have a SACC rating of only 8,500–10,000 BTU. This doesn’t mean it’s weaker—just more accurately labeled.
Look for:
Both SACC and ASHRAE BTU ratings on modern units
SACC numbers between 6,000–12,000 BTU for most home uses
A unit with dual hose design will generally have a higher SACC for the same ASHRAE rating

Yes, when used as directed:
• Ensure unit is on a flat surface
• Hoses and vents must be secure
• Filters must be clean
• No flammable items nearby

We do not recommend extending the exhaust or intake hose of your portable air conditioner. Longer hoses can:
• Reduce cooling efficiency
• Increase backpressure on the compressor
• Lead to overheating or system failure
• Void your product warranty
• If extension is absolutely necessary, follow these guidelines:
• Do not exceed 9 feet in total hose length
• Avoid sharp bends or vertical lifts
• Use only rigid or semi-rigid ducting that matches the original hose diameter — using a Whynter-approved accessory is best
• Never connect multiple hoses or use duct tape as a permanent seal
Tip: Always place the unit close to the window or venting location. The shorter and straighter the hose, the better the performance and longevity of your portable AC.

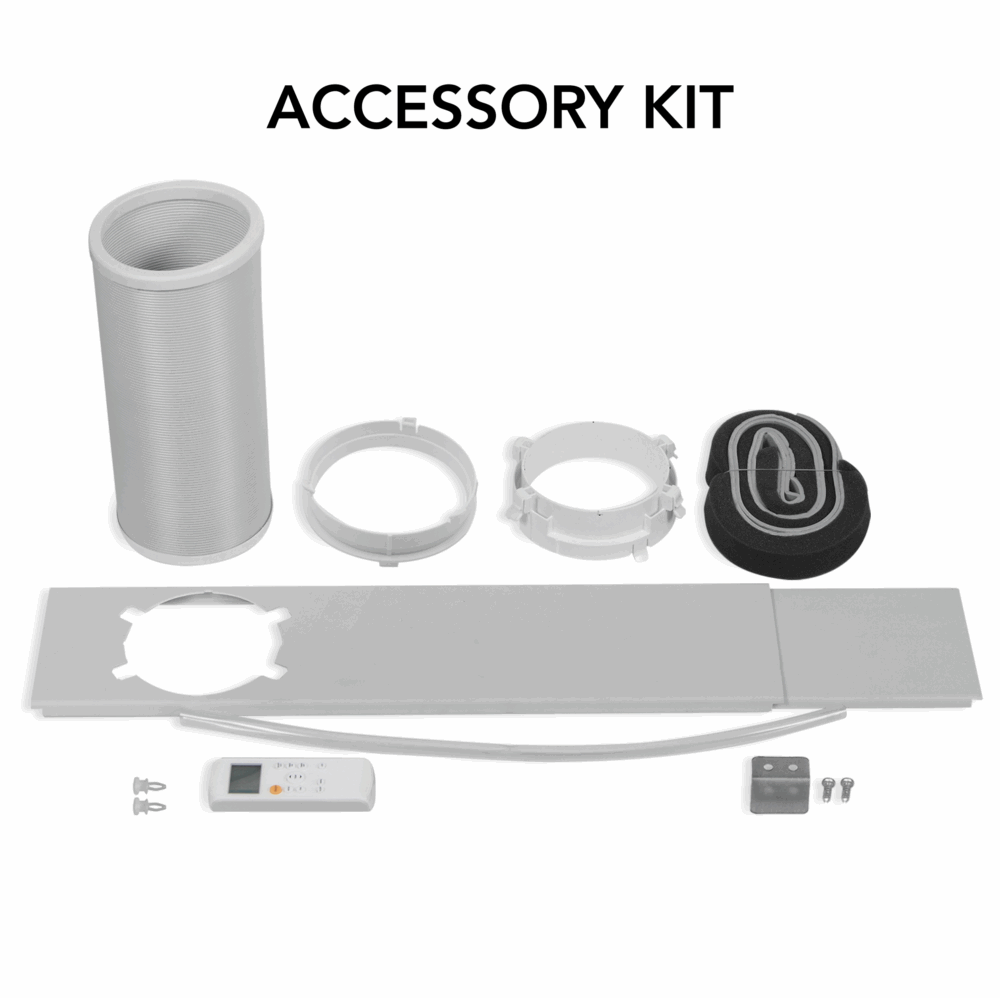

• Replacement window kits
• Exhaust and intake hoses
• Continuous drain hoses
• Remote controls
• Foam insulation seals
Visit our Accessories Page for compatible parts.

These messages indicate that the internal tank is full. Drain the unit manually or ensure the drain hose is properly connected for continuous drainage.

• Close blinds and windows during daylight
• Keep doors closed in the room being cooled
• Clean filters regularly
• Use dual-hose units for larger spaces
• Do not extend or bend the exhaust hose unnecessarily

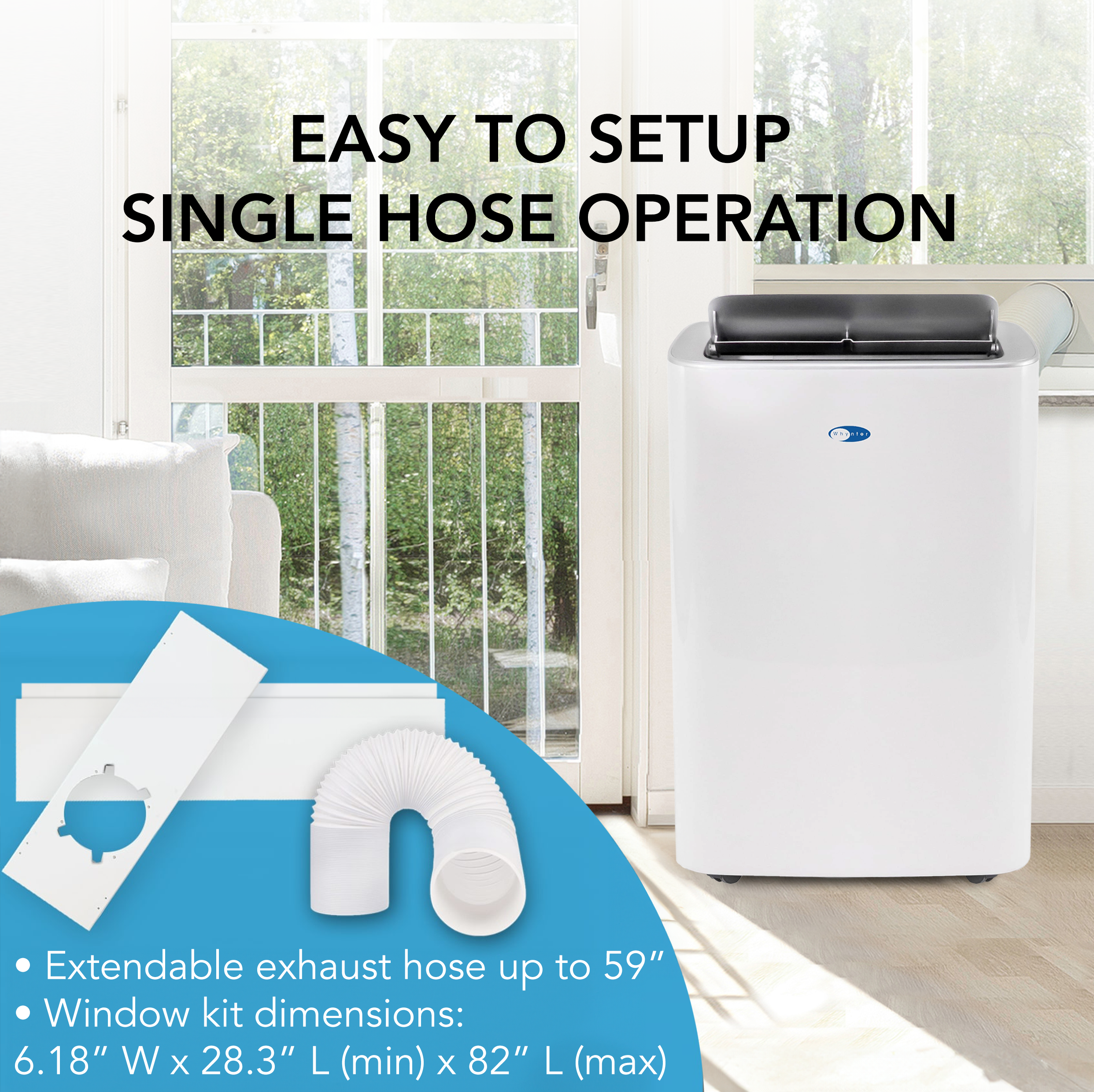

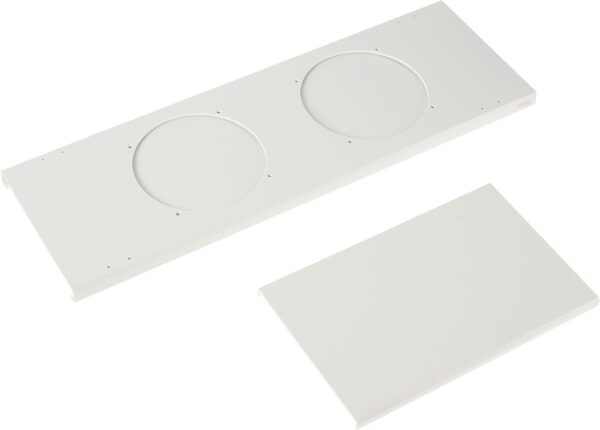

The included window kit is designed to fit most standard vertically or horizontally sliding windows. However, because window sizes can vary, some customization may be required.
If the panel with the hose cutout is too long for your window or door opening, it can be trimmed to size. We recommend cutting from the end opposite the hose cutout to avoid damaging the connection point or screw holes.
For best results, use a fine-tooth hand saw, rotary tool (such as a Dremel), or a plastic cutting tool. Many hardware stores can also assist with cutting the panel if you prefer not to do it yourself.
Always work on a flat surface, cut carefully, and wear appropriate safety gear.

Yes, the window screen can remain in place and won’t interfere with the installation.

Yes, although designed for window venting. While wall installation is possible, it requires some modification. For best results, use the included window panel with the pre-cut hose opening. Install the panel into the wall opening—this allows you to securely connect the exhaust hose using the original accessories and maintain a proper seal.

An after-market casement window kit can be used, or a custom kit can be made using Plexiglas.

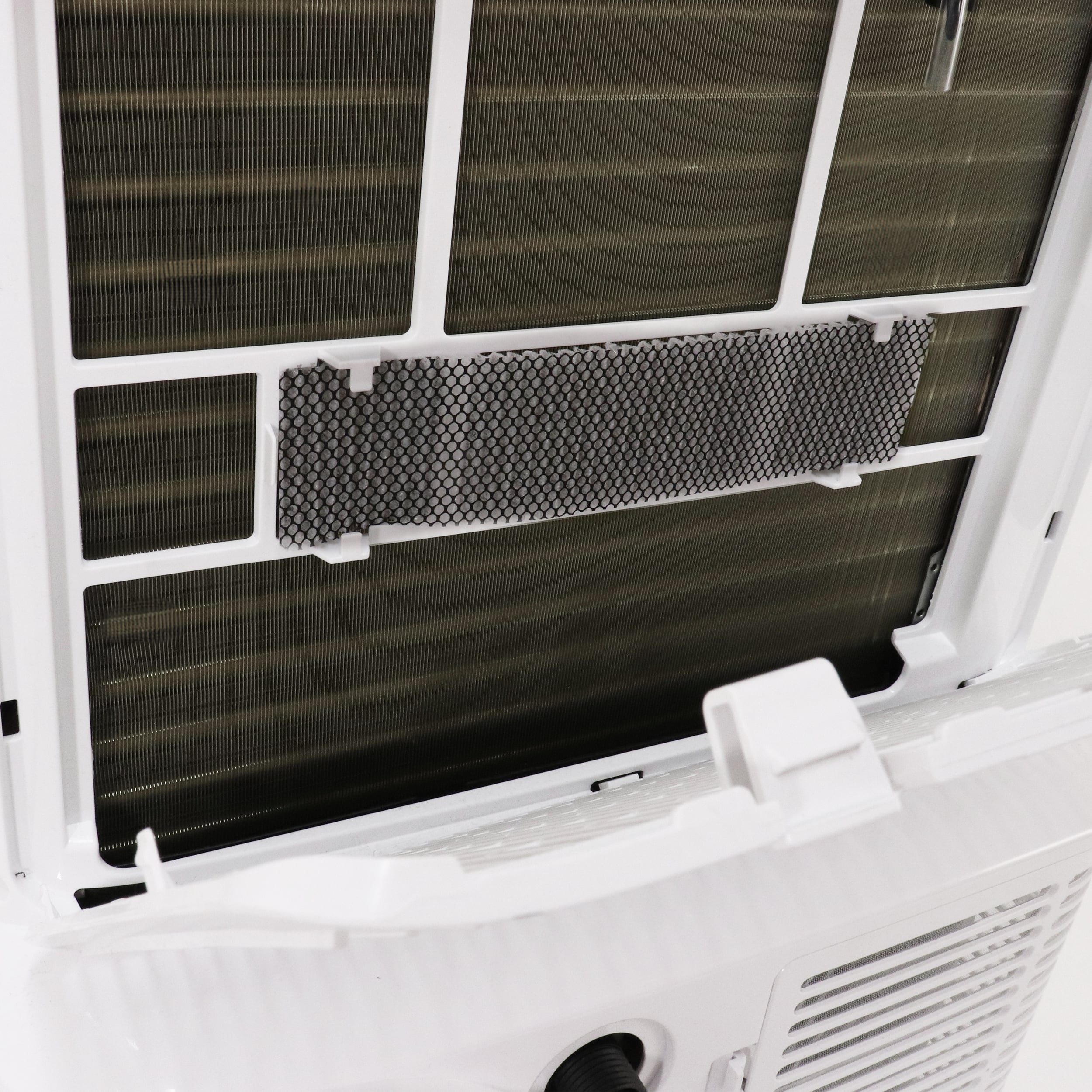

The washable air filters should be cleaned every two weeks during regular use.
If you notice reduced airflow, or visible buildup, it may be time to clean them sooner.

The carbon filters should be replaced every 2 to 3 months, depending on usage and air quality.
If you notice reduced airflow, increased odors, or visible buildup, it may be time to replace them sooner.
